Equipment
Advanced Coating & Cleaning Solutions
State-of-the-art FIC cleaning, Pulse CVD, and EB-PVD equipment designed for aviation MRO facilities. From single machines to complete production lines.
Equipment Portfolio
Core Equipment Solutions
Three generations of proprietary equipment covering the complete coating lifecycle — from precision cleaning to advanced vapor deposition.

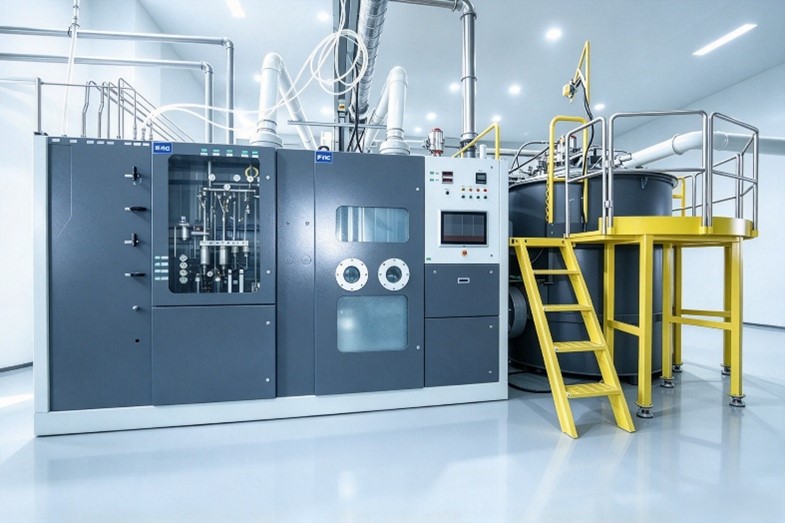

FIC Cleaning Equipment
3rd-Generation Pulsed Fluoride Ion Cleaning (FIC) Equipment
It adopts a dual vacuum pumping and top feeding design, with the workpiece retrieval position (after cleaning) located above the reaction kettle. The equipment is mainly used to clean carbon deposits, oxides, and other contaminants from the inner surfaces of cracks in components.
Technical Breakthrough
China's first pulsed fluoride ion cleaning equipment
Applications
10+ aero-engine and gas turbine models
Primary Use
Full-process cleaning of brazed blades

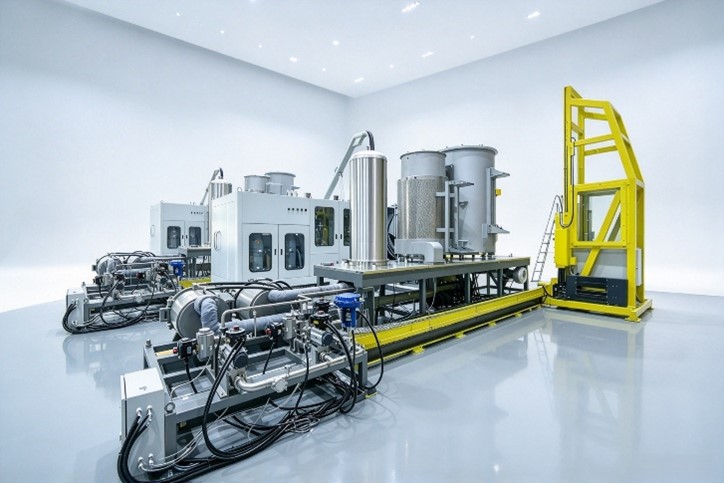

Pulse CVD Equipment
Pulsed Chemical Vapor Deposition (CVD) Equipment
This equipment is used for coating preparation on the internal cooling channels and outer surface of engine blades.
CAS Heritage
Core technology from CAS, 10+ years experience
After-Sales
7×24 rapid after-sales response
Spare Parts
Off-the-shelf vulnerable parts
Process Support
Comprehensive CVD process consulting
Delivery
5-7 months delivery time
Components
Core components from world-renowned brands
Software
Self-developed CVD control software, Chinese UI
On-site trial production support for new customers (first month)
Learn More

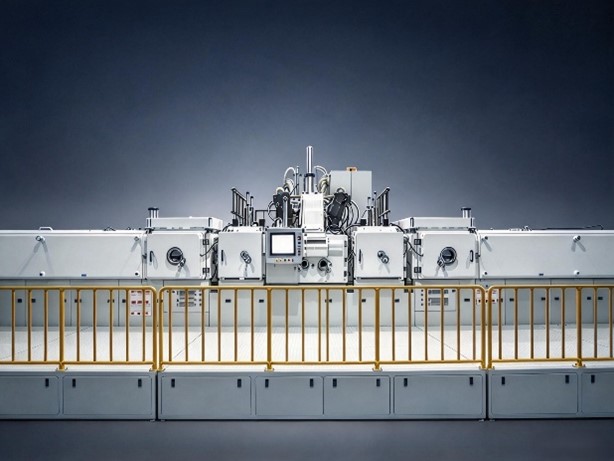

EB-PVD Equipment
High-Power Electron Beam Physical Vapor Deposition (EB-PVD) Equipment
Under high-vacuum conditions, a high-energy-density electron beam is used to bombard and heat the target material, forming a stable molten pool on its surface and bringing it to a vaporized state. Finally, the target material vapor condenses on the substrate to form the coating.
Electron Gun
Four sets of 100 kW high-power indirectly heated electron gun systems
Workpiece Fixture
Two-stage workpiece fixture tray
Crucibles
Three crucibles for co-deposition
Deposition
Multi-degree-of-freedom deposition
Target Storage
Max target material storage up to 1000 mm
Turnkey Solution
Turnkey Coating Production Line
Gas Cylinder Area → Pretreatment Area → Platinum Plating Area → Tooling Preparation Area → CVD Area → EB-PVD Area → Post-treatment Area → Quality Inspection Area.
Modular design allows capacity to be expanded as your volumes grow.
Applications
Equipment Process Applications
Our equipment serves critical coating and cleaning processes across aviation, power generation, and industrial gas turbine sectors.
Aviation Engine Components
- Turbine blade TBC/EBC coating renewal
- Combustion liner thermal barrier restoration
- Shroud segment coating application
- Transition duct protective coatings
Gas Turbine Hot-Section
- First-stage nozzle vane coating
- Rotor blade tip seal coating
- Heat shield panel refurbishment
- Fuel nozzle thermal protection
Industrial Coating Services
- Corrosion-resistant overlay coatings
- Wear-resistant surface treatment
- Oxidation protection systems
- Custom coating development
Service & Support
Installation, Training & After-Sales
Comprehensive lifecycle support from initial installation through ongoing operation, ensuring your equipment delivers maximum value.
Installation & Commissioning
On-site installation, utility connection, parameter optimization and trial runs to your coating specification.
Training
Equipment operation, safety procedures, routine maintenance and troubleshooting for your operators.
After-Sales
7×24 rapid response, off-the-shelf vulnerable parts, remote diagnostics and process optimization consulting.
Trial Production
For new customers with no prior experience, our engineers support on-site trial production in the first month.
References
Equipment References
Equipment type · industry · scope of supply — available on request. Detailed project references are provided under NDA at the quotation stage.
Request References
